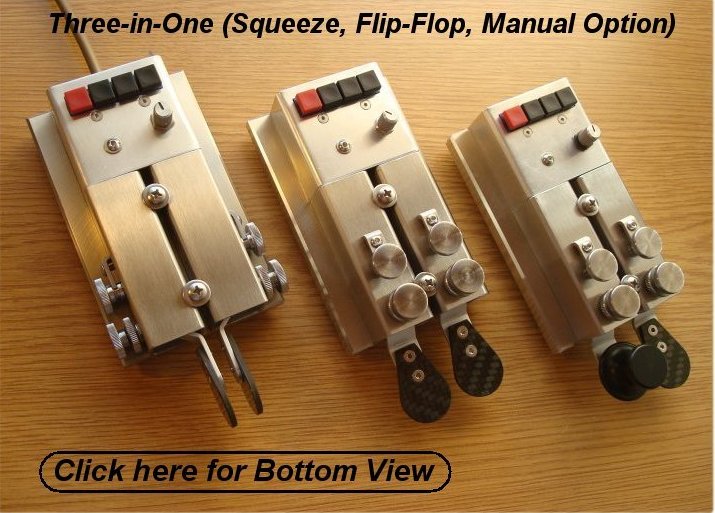

Morse Keyer Convertible (three-in-one) DPMA Reg.-No 20 2015 001 527.1 (German Patent Authorities) DPMA Reg.-No 20 2014 000 796.9 (German Patent Authorities)

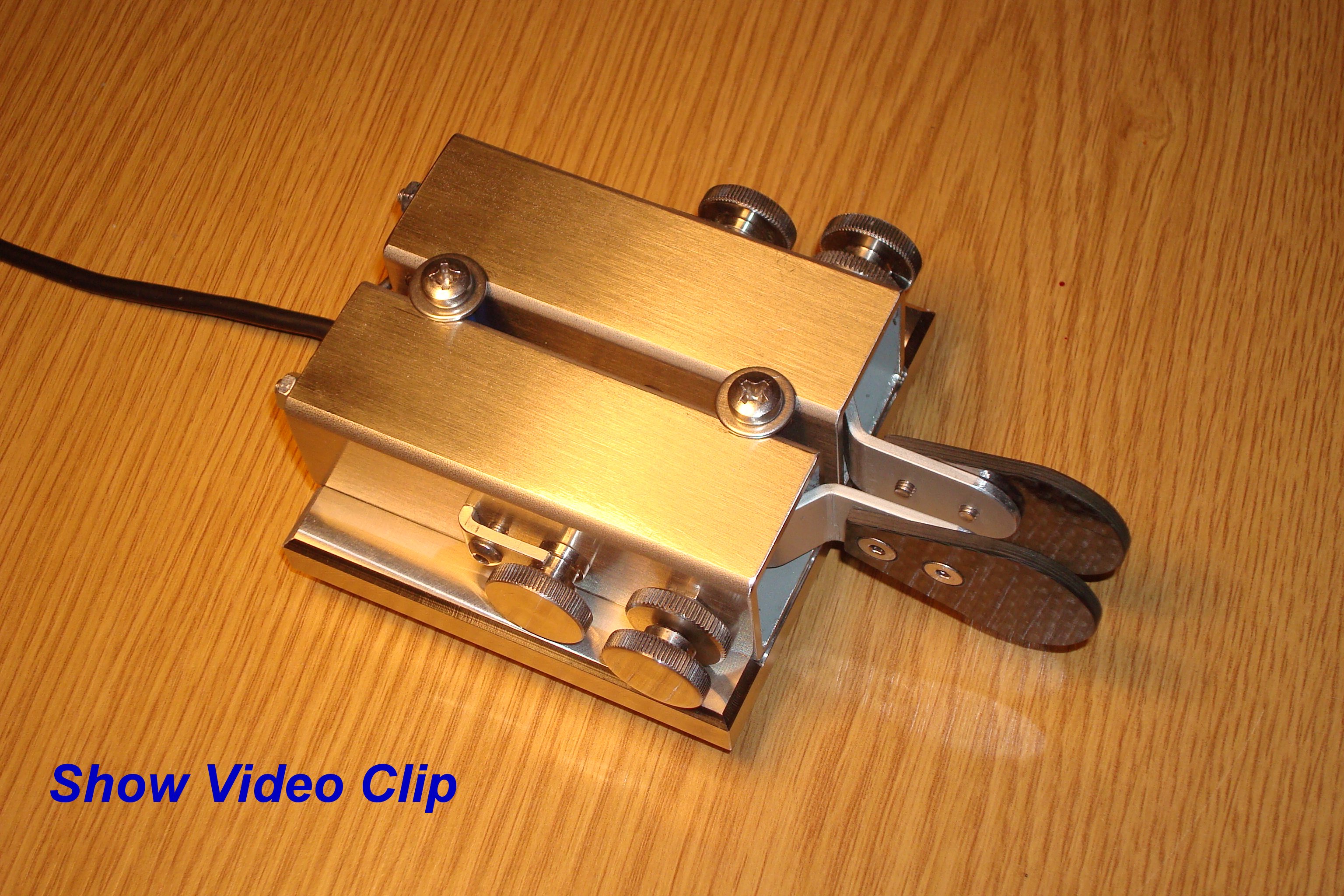

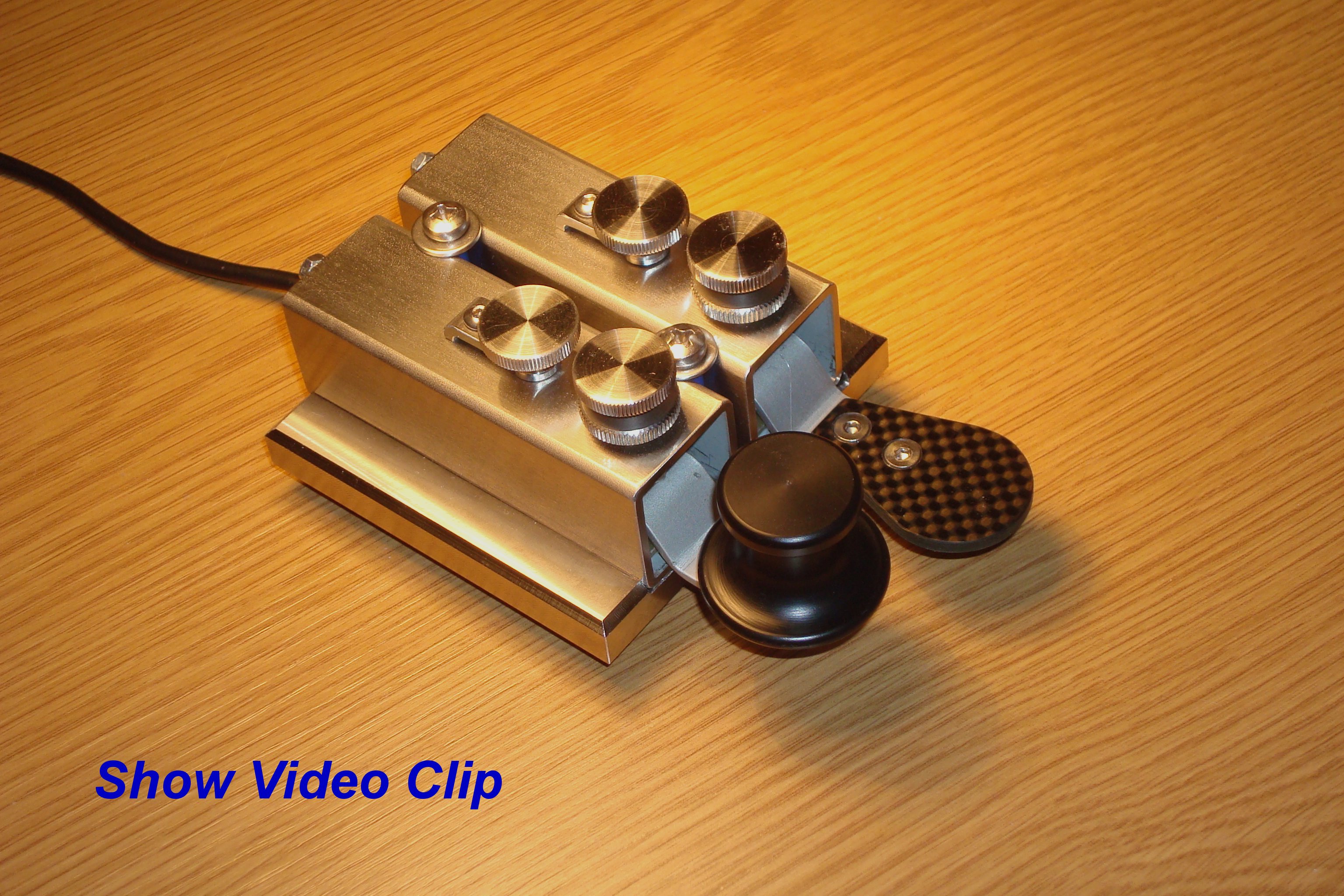

Basic Version without the K16 CW Processor User Instruction for the Limited Version Video Clip (4.4 MB): Demo to convert the Key into its 3 different modes Video Clip (3.62 MB): Morse Key Convertible (three-in-one) For more Info (PDF 7.35 KB) click here

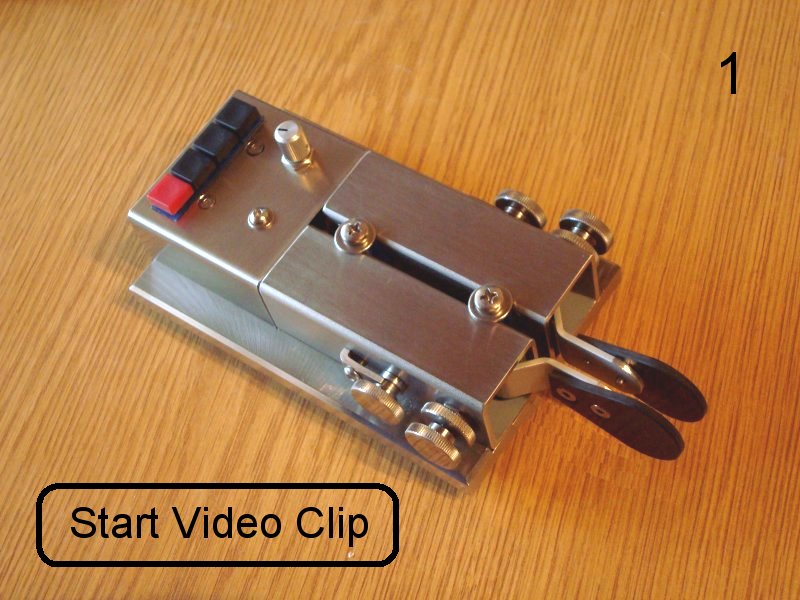

1. Fitted with the K16 CW Processor User Instruction for the K16 Version

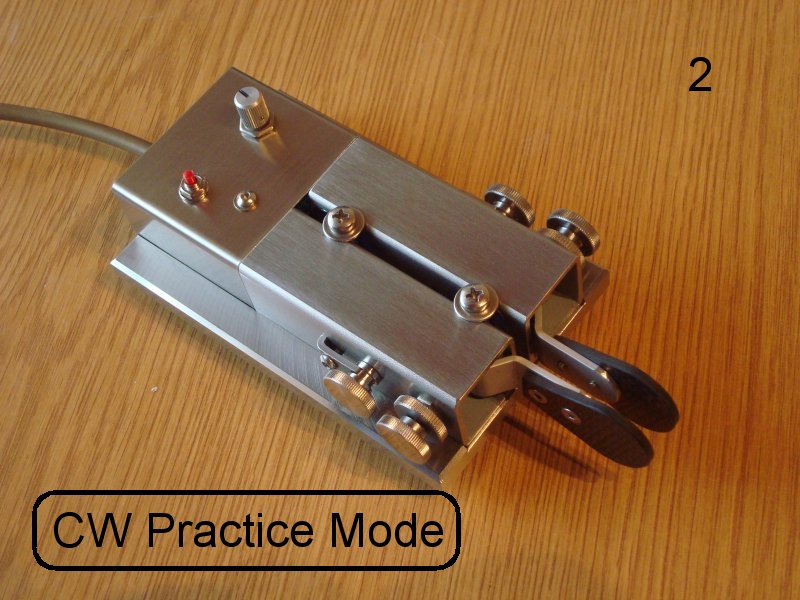

2. Without K16 memory facilities User Instruction for the Limited Version
Specification of Major Parts: - Base Plate, Casings, K16 Cover, Curled Screws and -Nuts (Stainless Steel) - Key Levers, (Aluminum Anodized) - Paddles (Carbon Fiber) - Magnetic Repulsation of Paddles/Levers - Contacts (Stainless Steel, Brass, Gold Plated) - Weight: 1 Kg
Video Clip (3.18 MB): Morse Key Convertible fitted with K1EL's K16-BAT Click here to see: Documentation for the K1EL Morse Code Processor K16 Something about: Iambic Key Mode 'A' or 'B' by WB9KZY HamCall.Net: Comment of VP8SGI
|
